# FZ - iButton
从零开始学习AWS黑客技术，成为专家htARTE（HackTricks AWS红队专家）！
支持HackTricks的其他方式：
* 如果您想看到您的**公司在HackTricks中做广告**或**下载PDF格式的HackTricks**，请查看[**订阅计划**](https://github.com/sponsors/carlospolop)!
* 获取[**官方PEASS和HackTricks周边产品**](https://peass.creator-spring.com)
* 探索[**PEASS家族**](https://opensea.io/collection/the-peass-family)，我们独家[**NFTs**](https://opensea.io/collection/the-peass-family)收藏品
* **加入** 💬 [**Discord群**](https://discord.gg/hRep4RUj7f) 或 [**电报群**](https://t.me/peass) 或在**Twitter**上关注我们 🐦 [**@carlospolopm**](https://twitter.com/hacktricks_live)**。**
* 通过向[**HackTricks**](https://github.com/carlospolop/hacktricks)和[**HackTricks Cloud**](https://github.com/carlospolop/hacktricks-cloud) github仓库提交PR来分享您的黑客技巧。
## 简介
有关iButton是什么的更多信息，请查看：
{% content-ref url="/pages/2Sz9qsXOxuZncImVybIa" %}
[iButton](/todo/radio-hacking/ibutton.md)
{% endcontent-ref %}
## 设计
以下图像中的**蓝色**部分是您需要**放置真实的iButton**以便Flipper可以**读取**的方式。**绿色**部分是您需要用Flipper zero**触摸读卡器**以**正确模拟iButton**的方式。
## 操作
### 读取
在读取模式下，Flipper正在等待iButton密钥触摸，并能够处理三种类型的密钥：**Dallas，Cyfral和Metakom**。Flipper将**自行确定密钥类型**。密钥协议的名称将显示在ID号码上方的屏幕上。
### 手动添加
可以**手动添加**类型为：**Dallas，Cyfral和Metakom**的iButton
### **模拟**
可以**模拟**已保存的iButton（已读取或手动添加）。
{% hint style="info" %}

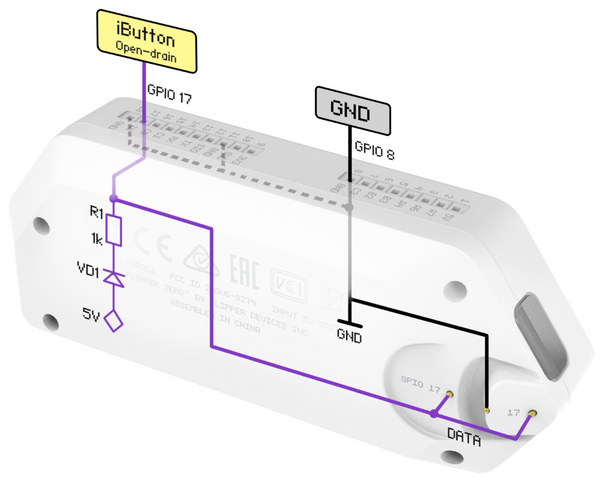

如果无法使Flipper Zero的预期接触点触摸读卡器，您可以**使用外部GPIO：**
{% endhint %}
